Colorjet Soniq Aqua Solvent Printing machine

Send Inquiry

Request To Call Back

Colorjet Soniq Aqua Solvent Printing machine

Name: Colorjet Soniq Aqua Solvent Printing machine
Brand: INDIAN POWER CONTROL
Price: 1000000.0 INR
Availability: InStock

Price 1000000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Colorjet Soniq Aqua Solvent Printing machine Specification

Type
Aqua Solvent Printing Machine

Material
Metal Body with Industrial-Grade Components

Capacity
High Volume, Continuous Printing

Printing Speed
Up to 915 sq.ft/hr

Computerized
Yes

Automatic Grade
Automatic

Plate Type
Roll to Roll

Print Direction
Unidirectional & Bidirectional

Ink Type
Aqua Solvent Ink

Color Management
Advanced Multi-Color CMYK Support

Working Temperature
18C - 28C

Power
AC 220V, 50/60Hz

Size
Large Format

Width
Up to 3200 mm

Weight (kg)
Approx. 600 kg

Dimension (L*W*H)
Approx. 4500 mm x 900 mm x 1400 mm

Interface
USB 2.0 / Ethernet

Print Head
Seiko SPT 510 / Konica Minolta 512i

Maximum Media Roll Diameter
Up to 300 mm

Noise Level
< 70 dB(A)

Usage/Application
Outdoor & Indoor large-format printing

Resolution
Up to 1440 dpi

Drying System
Integrated IR+Hot Air Dryer

Ink Supply System
Bulk Continuous Ink Supply System

No. of Print Heads
4 or 8 heads (Configurable)

Media Thickness
up to 3 mm

RIP Software
PhotoPRINT, Maintop

Media Types
Flex, Banner, Vinyl, Backlit Film, Canvas

About Colorjet Soniq Aqua Solvent Printing machine

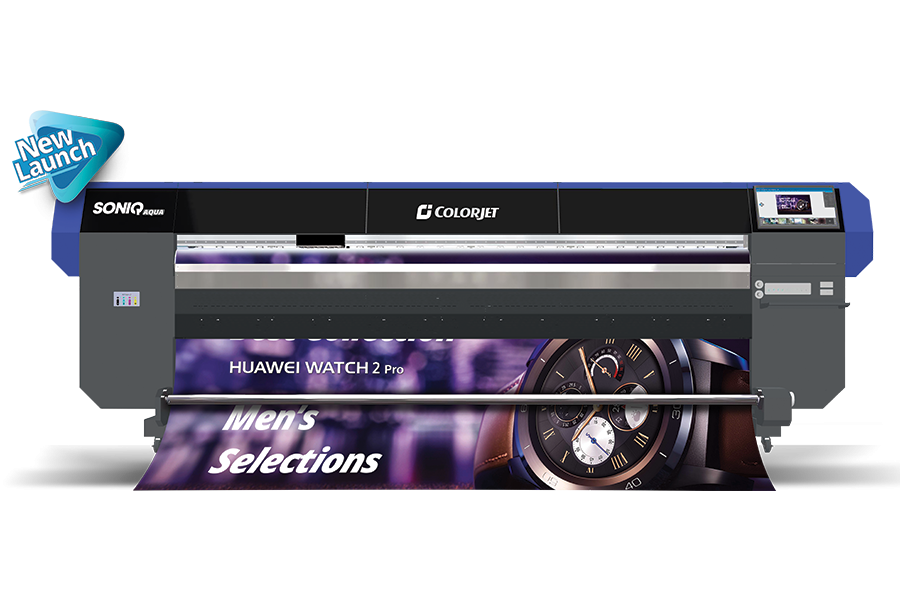

Introducing the SoniQ Aqua, a game-changing 3.2-meter HQ Solvent Printer engineered to redefine the standards in both indoor and outdoor signage production.
With 4/8 high-speed KM heads, it offers unmatched upgradability, ensuring future-proof performance. Delivering stunning quality at 2130 sqft. /hr (8 Heads), it's perfect for indoor and outdoor needs.

SONIQ AUQA
Model	SC4428	SC8428
Printing Technology	Drop-on-demand, Piezo electric inkjet
Print Heads	Konica Minolta Aqua
No. of Print Heads	4	8
Media	Width	3300 mm (129 in.)
Thickness	Maximum 3.0 mm (120 mil )with liner (flexible)
Roll Outer Diameter	Maximum 300mm (12inch), 50.8 (2 in)
Roll Weight	Maximum 90 kgs
Core Diameter	76.2mm (3 inch)
Types	SAV, PAV Banner, Backlite Film, Window Film, Fabric (Solvent Base)
Printing Width	Maximum 3200mm (126 inch.)
Inks	Types	Solvent/Mild Solvent inks
Color	4 Colors (CMYK)
Printing Resolution (dots per inch)	Maximum up to 1440 dpi
Distance Accuracy	Error of less than 0.3 % of distance travelled, or 0.3 mm, whichever is greater
Media Heating System	Pre-heater and post-heater, setting range for the preset temprature: 30 to 60. Dryer setting range for the preset temperature : 30 to 60
Connectivity	High speed USB 3.0 or more
Power Requirements (Peak)	AC 220 V 10%, 20 A, 50/60 Hz
Dimensions ( Printer only)	4689mm X 1079mm X 1571mm(WxLxH)
RIP Software	ColorJet Edition RIP
Weight	Net Weight : 550 KG, Gross Weight : 742 KG
Environmental	Power ON	Temperature: 18 to 28 Humidity: 20 to 40%RH (non-condensing)
Power OFF	Temperature: 5 to 40 Humidity: 20 to 80%RH (non-condensing)
Speed (In Sq. Meter/Hrs)	Print DPI	Passes	Sq Mtrs/Hr (4 Heads)	Sq Feet/Hr (8 Heads)
Mode 1	540x720	2	1050	2130
Mode 2	540x1080	3	700	1410
Mode 3	540x1440	4	525	1050
Mode 4	540x1080	6	350	700
Mode 5	540x1440	8	260	500

Versatile Media Compatibility

The Soniq Aqua Solvent Printer is designed to handle a diverse range of media such as flex, banners, vinyl, canvas, and backlit films, up to 3 mm thick. This flexibility allows you to cater to a variety of advertising and display needs, both indoors and outdoors, making it ideal for print service providers and signage businesses seeking adaptability.

Precision Printing and High Productivity

With a maximum resolution of 1440 dpi and a configurable print head system (4 or 8 heads), this machine delivers crisp, detailed images at impressive production speeds. The integrated drying system-combining IR and hot air-ensures swift output handling, while the bulk continuous ink supply supports uninterrupted, high-volume work.

User-Friendly Digital Control and Integration

Equipped with an intuitive digital control panel and seamless software interface, the Soniq supports USB 2.0 and Ethernet connectivity for smooth operation. Advanced color management based on ICC profiles and compatibility with PhotoPRINT and Maintop RIP software enable precise color reproduction and streamlined print workflows.

FAQ's of Colorjet Soniq Aqua Solvent Printing machine:

Q: How does the Colorjet Soniq Aqua Solvent Printing Machine ensure consistent print quality?

A: The Soniq features configurable Seiko SPT 510 or Konica Minolta 512i print heads and supports up to 1440 dpi resolution. Combined with advanced ICC profile-based color management and precise digital control, this results in consistently vibrant, accurate prints.

Q: What media types and thicknesses can this machine handle?

A: This printer accommodates a wide variety of media, including flex, banners, vinyl, backlit films, and canvas, handling media thicknesses up to 3 mm and media roll diameters up to 300 mm, giving you flexibility for diverse print applications.

Q: When is it beneficial to use this machine for printing?

A: The Soniq is ideal for both high-volume and detailed large-format printing, making it a great choice for print service providers who need fast, reliable output for outdoor billboards, indoor displays, banners, signage, and promotional materials.

Q: Where can the Colorjet Soniq Aqua Solvent Printing Machine be used?

A: This machine is suitable for print businesses, advertising agencies, commercial print shops, and signage companies in India and similar markets that require robust, large-format printing for both indoor and outdoor applications.

Q: What is the process for operating this printing machine?

A: Simply load your chosen media and ink, connect via USB 2.0 or Ethernet, set up your design in compatible RIP software (PhotoPRINT or Maintop), and control printing through the machine's digital panel. The integrated IR and hot air dryer ensures rapid drying for continuous workflow.

Q: How does the integrated drying system improve the printing process?

A: The integrated IR plus hot air dryer quickly cures prints, allowing for immediate handling and reducing the risk of smudging or delays, which is especially beneficial in fast-paced production environments.

Q: What are the main benefits of choosing the Soniq Aqua Solvent Printer?

A: Key benefits include high-speed and high-resolution output, flexible media handling, reliable bulk ink supply, easy digital control, and suitability for a wide range of print applications-all backed by a sturdy industrial-grade construction for long-term use.
